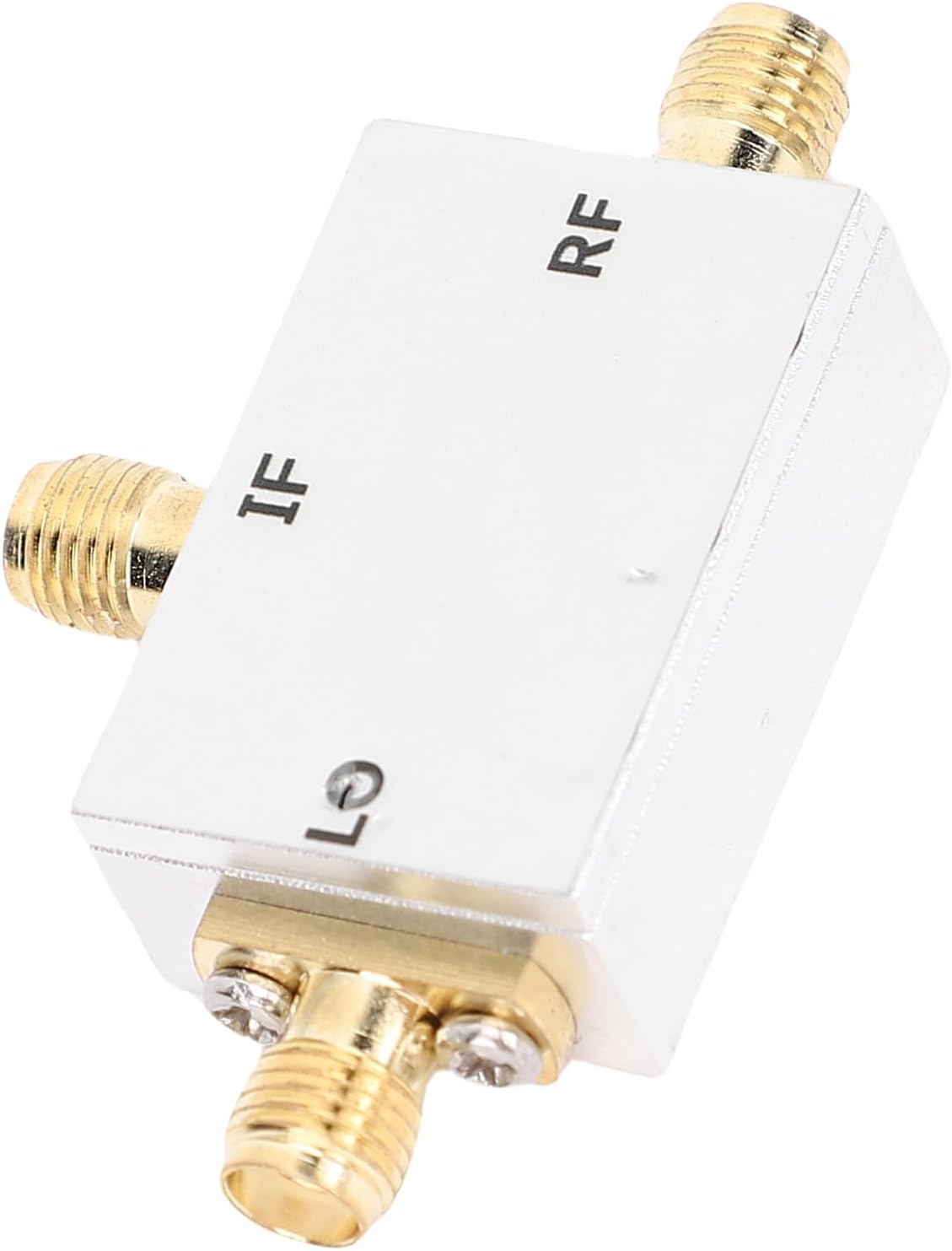

Yunir RF Mixer, 5-21GHz Up Down Frequency Converter, KU Band Mixer with SMA Female Connectors

1. BROADBAND FREQUENCY RANGE: Achieves up conversion and down conversion functions within a frequency range of 5-21GHz, with a maximum frequency capability of up to 21GHz. 2. ALUMINUM ALLOY CONSTRUCTION: Made from sturdy aluminum alloy, this RF mixer is robust, providing excellent electromagnetic shielding performance to ensure good performance use. 3. LOW INSERTION LOSS DESIGN: Features a high frequency low insertion loss circuit board, allowing both LO and RF to operate in the 5-21GHz broadband range with minimal performance loss. 4. WIDE IF FREQUENCY COVERAGE: Offers intermediate frequency (IF) support from DC to 5000MHz, suitable for standard frequencies such as 5.8G, 8G, 12G, and 18G, ensuring compatibility with various systems. 5. EFFICIENT MIXING PERFORMANCE: Designed for frequency conversion in RF transmitters and down conversion in receivers, this KU band mixer delivers low conversion loss with standard SMA connectors for seamless integration. Specification: Item Type: RF MixerMaterial: Aluminum Alloy Model: MIX0521S RF/LO Working Frequency: 5-21GHz IF Intermediate Frequency Working Frequency: DC-5000MHz Conversion Loss: 8-12dB Isolation: LO RF:29dB (Typical) Local Oscillator LO Drive: +15dBm Input Output Interface: SMA K How to Use: DIY assembly for immediate use Package List: 1 x Broadband RF Mixer

• BROADBAND FREQUENCY RANGE: Achieves up conversion and down conversion functions within a frequency range of 5-21GHz, with a maximum frequency capability of up to 21GHz.
• ALUMINUM ALLOY CONSTRUCTION: Made from sturdy aluminum alloy, this RF mixer is robust, providing excellent electromagnetic shielding performance to ensure good performance use.
• LOW INSERTION LOSS DESIGN: Features a high frequency low insertion loss circuit board, allowing both LO and RF to operate in the 5-21GHz broadband range with minimal performance loss.
• WIDE IF FREQUENCY COVERAGE: Offers intermediate frequency (IF) support from DC to 5000MHz, suitable for standard frequencies such as 5.8G, 8G, 12G, and 18G, ensuring compatibility with various systems.
• EFFICIENT MIXING PERFORMANCE: Designed for frequency conversion in RF transmitters and down conversion in receivers, this KU band mixer delivers low conversion loss with standard SMA connectors for seamless integration.
